How Injection Moldable & Low Temperature Resistant Agricultural Machinery Wire Harness Prevents Cold Crack Failures

Unplanned equipment downtime during winter farming or early spring transitions carries high financial penalties. Operators face tight operational windows, making every lost hour critical. Electrical system failure often ranks as a primary culprit in these unexpected breakdowns. Specifically, extreme cold and mechanical stress severely compromise traditional electrical assemblies.

Standard plastic enclosures and potting materials lose their molecular mobility in sub-zero temperatures. This rigid state leads directly to brittle fractures, commonly known as cold cracking, when exposed to heavy agricultural vibration. Moisture then infiltrates these cracks, causing rapid component corrosion and system-wide failures.

Transitioning to injection moldable solutions offers a proven path forward. Specifically, low-pressure molding (LPM) combined with advanced polyamides creates hermetically sealed, flexible assemblies. You will learn how these stress-relieved components prevent cold crack failures, protect critical sensors, and drastically reduce warranty claims and field maintenance for heavy equipment OEMs.

Key Takeaways

• Standard potting and high-pressure injection often damage delicate components or fail under cold-weather vibration; Low-Pressure Molding (LPM) encapsulates at ~500 psi, ensuring component safety.

• Achieving low temp flexibility requires specific polyamide formulations that remain ductile well below standard plastic α-transition temperatures.

• Overmolded connectors act as built-in strain relief, explicitly targeting high-risk stress zones like articulation hinges and implement attachment points.

• Evaluating a manufacturing partner requires verifying their adherence to IPC/WHMA-A-620 standards and capability to perform thermal shock and freeze-drop validation.

The Mechanics of Cold Crack Failures in Winter Farming

To solve cold weather electrical failures, we must first understand the intersection of thermal and mechanical stress. Standard polymers lose their elasticity when temperatures drop below specific thresholds. Engineers refer to this as the alpha-transition temperature. Below this point, polymer chains lock into place. They lose the free volume necessary to absorb impact or flex under strain. The material transforms from a tough, pliable shield into a brittle shell.

This molecular rigidity creates a perfect storm when combined with residual manufacturing stress. Traditional injection molding often leaves internal stresses trapped within the plastic housing. Once the ambient temperature plummets, the material becomes highly susceptible to fracturing. Micro-cracks propagate rapidly under the constant, high-amplitude vibration of heavy diesel engines or the intense shock of driving over rough, frozen terrain. Standard rigid epoxies cannot flex, so they simply break.

The real-world impact on combine harvester wiring demonstrates the severe cascade effect of a cold crack. First, the brittle plastic or potting material fractures. This micro-crack acts as a microscopic funnel for environmental hazards. Moisture, melting snow, and de-icing chemicals ingress into the connector housing. Next, corrosion attacks the delicate copper pins and printed circuit board (PCB) joints. You start seeing erratic sensor data on the operator's display. Finally, shorts occur across the power lines, causing a complete system failure right in the middle of a critical harvesting window.

Low-Pressure Molding (LPM) vs. Traditional Potting for Agricultural Machinery Wire Harness

Engineers historically relied on two methods to protect an agricultural machinery Wire Harness from the elements: liquid potting or high-pressure injection molding. Both legacy solutions carry significant limitations when applied to heavy-duty, cold-weather environments. We must contrast these traditional approaches with thermoplastic Low-Pressure Molding (LPM) to understand the modern standard for reliability.

Legacy potting uses two-part epoxies or polyurethanes. This process is inherently messy and prone to internal voids if you do not strictly control the vacuum degassing process. Potting requires a hard outer plastic enclosure to hold the liquid while it cures. Furthermore, rigid potting lacks inherent strain relief. When subjected to thermal shock, the rigid epoxy expands and contracts at a different rate than the copper wires, often tearing the internal components apart.

High-pressure injection molding presents another set of dangers. Traditional injection molding runs at massive pressures, often around 15,000 psi. If you try to overmold delicate electronic components, this extreme pressure crushes sensitive sensors, snaps PCB solder joints, and distorts wire crimps. It requires massive steel tooling that costs tens of thousands of dollars to machine.

LPM offers a distinct advantage by operating at a maximum of roughly 500 psi. This gentle pressure safely encapsulates the most fragile electronic components directly. The process uses aluminum tooling, which dissipates heat faster and costs significantly less than steel molds. More importantly, the hot-melt adhesive chemically and mechanically bonds directly to the cable jacket. It eliminates the need for hard plastic outer shells entirely.

Material Selection for Low Temp Flexibility and Chemical Resistance

The viability of an agricultural wiring system depends heavily on the polymer's thermal and chemical profile. You cannot simply apply standard consumer-grade plastics to heavy machinery and expect them to survive. Material selection dictates performance.

Polyamide hot-melt adhesives represent the gold standard for LPM applications. Manufacturers increasingly use renewable-sourced polyamides derived from natural resources like castor beans. These advanced materials provide an incredibly broad operating window, typically ranging from -40°C to 150°C. They maintain their structural integrity at high engine temperatures while retaining critical ductility in deep freezes. This ensures they absorb shock rather than shattering under impact.

However, securing low temp flexibility requires synergy across the entire assembly. You must pair moldable connector resins with the right cable jackets. Industry leaders often utilize Cross-linked Polyethylene (XLPE) or specialized Thermoplastic Polyurethanes (TPU). XLPE provides excellent resistance to melting near engine blocks, while TPU offers superior abrasion resistance and flexibility. When the LPM polyamide bonds to a TPU jacket, it creates a continuous, unbroken shield against the elements.

Environmental defenses matter just as much as thermal performance. Agricultural settings expose equipment to a harsh cocktail of substances. The selected polyamide and jacket materials must inherently resist agricultural chemicals. They must withstand daily exposure to nitrogen-rich fertilizers, caustic herbicides, intense UV radiation, and diesel fuel. Inferior plastics will swell, soften, or degrade when exposed to these chemicals, ultimately leading to seal failure.

Engineering Overmolded Connectors for High-Risk Stress Zones

Identifying exactly where wire harnesses fail mechanically allows engineers to apply targeted overmolding. You cannot optimize an assembly without mapping the physical implementation realities of the machine.

Agricultural equipment features distinct high-risk stress zones that destroy standard wiring. By mapping these zones, you can deploy overmolded connectors to maximum effect:

• Articulation joints and folding mechanisms: Large sprayers and planters fold massive booms for transport. The cables crossing these hinges undergo severe, repetitive bending.

• Engine-to-chassis transition points: The diesel engine vibrates at a completely different frequency than the rigid steel chassis. Cables bridging this gap experience intense differential vibration, which rapidly fatigues copper strands.

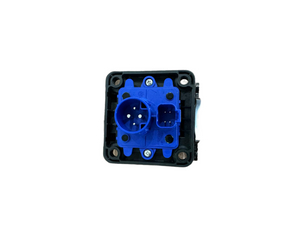

• Exposed implement connectors: Operators frequently plug and unplug attachments in the field. They usually wear heavy winter gloves, pulling on the cables rather than the connector bodies, causing massive strain on the crimps.

Design for Manufacturability (DFM) addresses these zones directly. Engineers utilize overmolding to create customized bushings and built-in strain reliefs. Instead of a hard right-angle exit from a connector, the overmold provides a tapered, flexible tail. This tail gradually transitions the stiffness from the rigid connector body down to the flexible cable. It successfully disperses the mechanical bending load away from the fragile copper crimp points. The stress moves directly into the ruggedized outer jacket, preventing conductor fatigue and pull-out failures.

Validating Reliability: Testing Standards and Compliance

Reliable performance claims mean nothing without quantifiable testing protocols. Heavy machinery OEMs require definitive proof before integrating new electrical assemblies into their platforms. Trust in a wiring solution builds upon a foundation of rigorous environmental and electrical validation.

Core testing requirements generally fall into two categories: environmental endurance and electromechanical integrity. We establish reliability through the following critical procedures:

1. Thermal Shock Cycling: Assemblies undergo rapid transitions from extreme cold (-40°C) to operating heat (+85°C or +125°C). This ensures the polyamide and the cable jacket expand and contract together without delaminating or cracking.

2. Freeze-Drop Impact Testing: Technicians freeze the overmolded assemblies to sub-zero temperatures and subject them to calibrated physical impacts. This verifies the anti-brittle performance of the material formulation.

3. Electrical Continuity and Hi-Pot: Every assembly requires 100% continuity testing to confirm pin-to-pin accuracy. High-potential (Hi-pot) testing applies high voltage to ensure the dielectric withstand capability of the overmold, proving moisture has not compromised the insulation.

4. Pull-Force Retention: Mechanical testing applies severe tension to the cable to verify the strain relief effectively protects the internal crimps from breaking under operator abuse.

Furthermore, dependable manufacturing processes must strictly adhere to recognized industry standards. For heavy agricultural equipment, facilities should comply with IPC/WHMA-A-620 Class 2 or Class 3 requirements. These standards govern acceptable cable and wire harness fabrication methods, ensuring consistent crimp quality, proper soldering, and reliable encapsulation.

Procurement Logic: Shortlisting an OEM Harness Manufacturer

Selecting a supplier capable of executing low-temperature LPM solutions requires a strict evaluation framework. Not all harness manufacturers possess the equipment, engineering talent, or process controls necessary to produce reliable overmolded assemblies. You need criteria to separate true partners from basic build-to-print shops.

When evaluating potential suppliers, pay close attention to their tooling, process discipline, and quality tracking capabilities.

The next steps for engineering teams involve practical collaboration. Request a DFM review of your existing legacy potted harnesses. A qualified manufacturing partner will analyze your current drawings, identify the mechanical failure points, and propose a transition to an overmolded design. They will help you calculate the weight reduction, simplify the bill of materials, and project the long-term reliability improvements.

Conclusion

Upgrading from legacy rigid plastics and traditional potting to injection-moldable, low-temperature polyamides is not merely a localized reliability upgrade. It represents a strategic reduction in warranty claims, field maintenance, and emergency service calls. By addressing the root causes of thermal and mechanical stress, OEMs build significantly more resilient machines.

Take proactive steps to evaluate your current wire routing. Identify the high-vibration and deep-freeze failure points in your platforms. Partner with a supplier who understands the nuances of LPM tooling, polyamide material science, and IPC-620 compliance.

Ultimately, OEMs that design for the harsh realities of mechanical stress and sub-zero temperatures directly protect their brand's reputation. Durable electrical systems keep farmers in the field during critical seasonal windows, securing long-term customer loyalty and market leadership.

FAQ

Q: Does low-pressure overmolding provide the same IP rating as traditional epoxy potting?

A: Yes. When correctly engineered, low-pressure molding bonds at the molecular level to the cable jacket and connector base. It easily achieves IP67 and IP69K ratings. This protects components against high-pressure, high-temperature washdowns without the risk of the epoxy cracking or delaminating under thermal stress.

Q: Is an injection moldable agricultural machinery wire harness more expensive to produce?

A: While raw LPM polyamide materials cost more per pound than basic potting resins, the overall process usually saves money. The elimination of hard plastic housings, a massive reduction in material waste, and cycle times measured in seconds (versus hours of epoxy curing) typically result in a lower per-part cost at scale.

Q: How does overmolding improve pull-force resistance?

A: It encapsulates the entire termination area, including the wire, the internal crimp, and the connector housing, into a single monolithic block. This intelligent geometry transfers applied tension away from the fragile copper terminals and directly into the highly robust outer cable jacket.
